Ardiani, Fira (2025) Pra Rancangan Pabrik Sorbitol dari Dekstrosa dengan Proses Hidrogenasi Katalitik Menggunakan Katalis Raney Nikel Kapasitas 64.000 Ton/Tahun. Undergraduate thesis, UPN Veteran Jawa Timur.
![[img]](https://repository.upnjatim.ac.id/style/images/fileicons/text.png) |

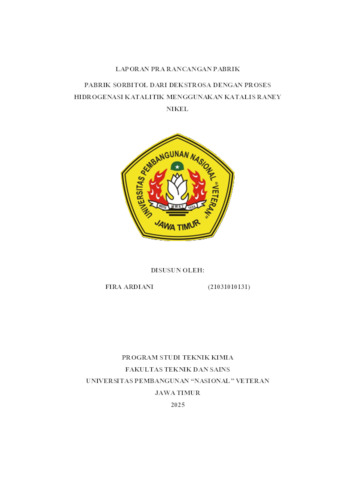

Text (Cover)
21031010131.-cover.pdf Download (1MB) |
|

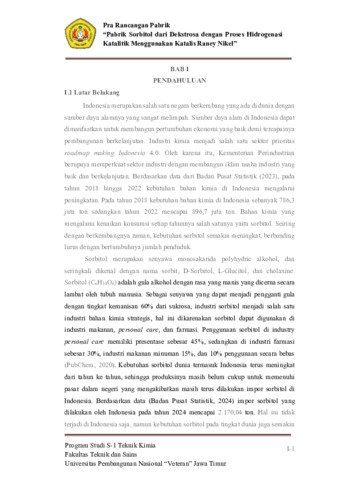

Text (Bab I)
21031010131.-bab1.pdf Download (399kB) |
|
Text (Bab II)
21031010131.-bab2.pdf Download (462kB) |
|
Text (Bab III)
21031010131.-bab3.pdf Restricted to Repository staff only until 5 December 2028. Download (180kB) |
|
Text (Bab IV)
21031010131.-bab4.pdf Restricted to Repository staff only until 5 December 2028. Download (328kB) |
|
Text (Bab V)
21031010131.-bab5.pdf Restricted to Repository staff only until 5 December 2028. Download (351kB) |
|
Text (Bab VI)
21031010131.-bab6.pdf Restricted to Repository staff only until 5 December 2028. Download (358kB) |
|
Text (Bab VII)
21031010131.-bab7.pdf Restricted to Repository staff only until 5 December 2028. Download (910kB) |
|

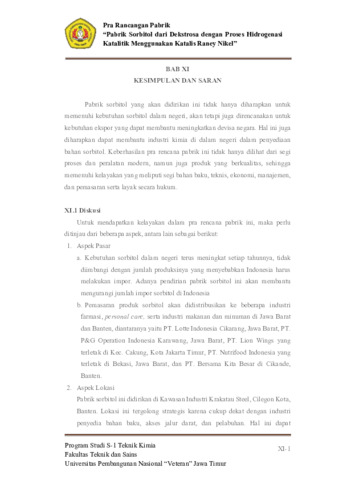

Text (Bab VIII-XI)
21031010131.-bab8-11.pdf Restricted to Repository staff only until 5 December 2028. Download (458kB) |
|

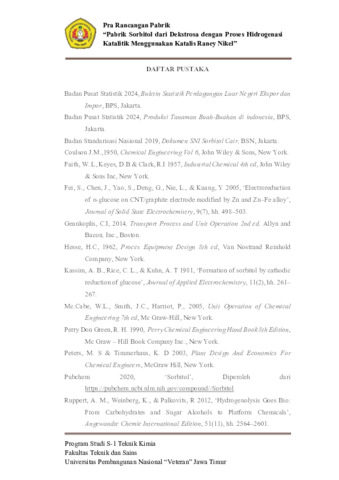

Text (Daftar Pustaka)
21031010131.-daftarpustaka.pdf Download (227kB) |
|
Text (Lampiran)
21031010131.-lampiran.pdf Restricted to Repository staff only until 5 December 2028. Download (59MB) |
|

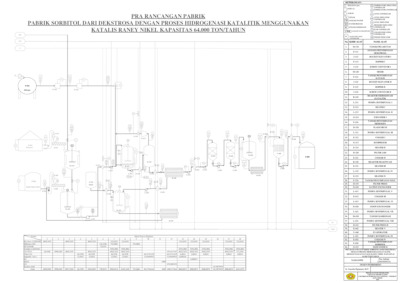

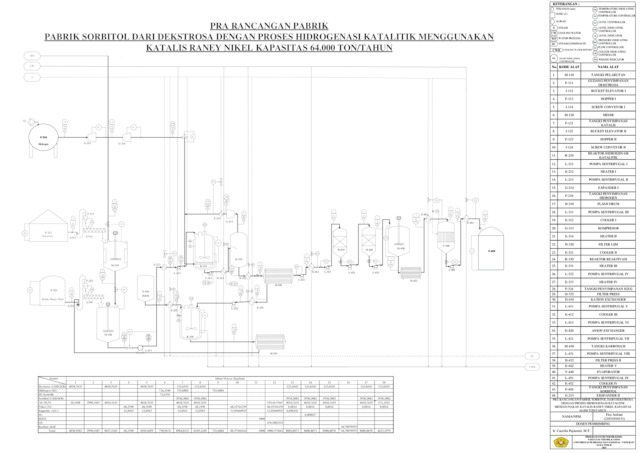

Text (Flowsheet)
flowsheet.pdf Download (860kB) |
Abstract
Sorbitol in this design is obtained through a catalytic hydrogenation process of a solution between dextrose and hydrogen gas with the aid of a Raney nickel catalyst. Dextrose is stored in a dextrose storage warehouse (F-111) and transported to hopper I (F-113) with the aid of a bucket elevator (J-112). The dextrose is then dissolved in water in the dissolution tank (M-110) with the help of a screw conveyor (J-114) to produce a 50% dextrose solution. This 50% dextrose solution is then fed into the mixer (M-120) to be mixed with the Raney nickel catalyst first. The Raney nickel catalyst is stored in the catalyst storage warehouse (F-121). The catalyst is transported with the help of a bucket elevator (J-122) to the hopper (F-123) and screw conveyor (J-124) to the mixer (M-120). The dextrose and nickel solution is then flowed to the heater (E-212) to raise its temperature to 1600C. Next, the dextrose and nickel solution is flowed to the catalytic hydrogenation reactor (R-210). This process is carried out at a temperature of 1600C and 100 atm. The sorbitol is then separated by a separator (H-310). The hydrogen that does not react is separated by a separator and then recycled for the next catalytic hydrogenation process. After the separator, the sorbitol is fed into a cooler (E-321) to be cooled to 40°C, which is then filtered by an LSM filter (H-320). The successfully separated catalyst will be recycled for the next hydrogenation process. Sorbitol is then purified with cation (D-410) and anion exchangers (D-420) to remove Al impurities contained in the Raney nickel catalyst. Next, the sorbitol is fed into the carbonation tank (D-430) for the purification process. The adsorption process is aided by activated carbon to absorb the color produced from the previous process, resulting in clearer sorbitol. The purified (50%) dilute sorbitol solution is fed into the The purified dilute sorbitol solution (50%) is fed into the evaporator (V-440) at a temperature of approximately 100°C for concentration. Sorbitol with a concentration of 85% is produced. The sorbitol is then cooled using a cooler (E-452) and sent to the product storage tank (F-450).
| Item Type: | Thesis (Undergraduate) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Contributors: |
|
||||||||
| Subjects: | T Technology > TP Chemical technology > TP155 Chemical engineering | ||||||||
| Divisions: | Faculty of Engineering > Departement of Chemical Engineering | ||||||||
| Depositing User: | Fira Ardiani Fira Ardiani | ||||||||
| Date Deposited: | 05 Dec 2025 09:12 | ||||||||
| Last Modified: | 05 Dec 2025 09:12 | ||||||||
| URI: | https://repository.upnjatim.ac.id/id/eprint/48019 |
