Wahyudi, Mohammad Rafli Alif (2025) Sintesis dan Karakterisasi Hidroksiapatit dari Precipitated Calcium Carbonate dengan Penambahan Gelatin menggunakan Metode Sol-Gel. Undergraduate thesis, UPN Veteran Jawa Timur.
![[img]](https://repository.upnjatim.ac.id/style/images/fileicons/text.png) |
Text (Cover)
21031010068.-cover.pdf Download (1MB) |
|

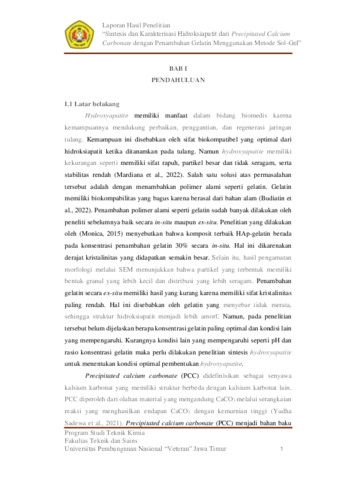

Text (BAB I)
21031010068.-bab1.PDF Download (2MB) |
|
Text (BAB II)
21031010068.-bab2.PDF Restricted to Repository staff only until 3 December 2028. Download (2MB) |
|
Text (BAB III)
21031010068.-bab3.PDF Restricted to Repository staff only until 3 December 2028. Download (2MB) |
|
Text (BAB IV)
21031010068.-bab4.PDF Restricted to Repository staff only until 3 December 2028. Download (2MB) |
|

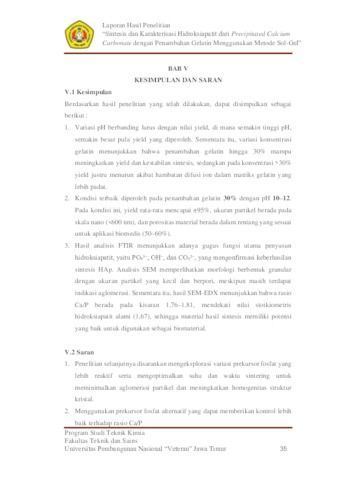

Text (BAB V)
21031010068.-bab5.PDF Download (2MB) |
|

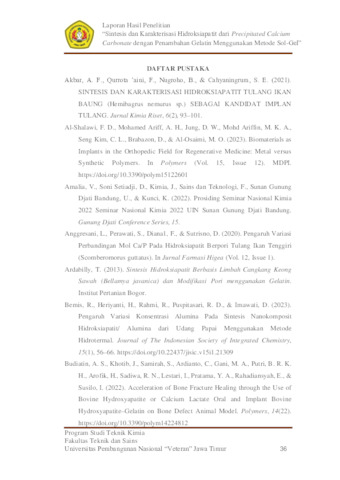

Text (Daftar Pustaka)
21031010068.-daftar pustaka.PDF Download (2MB) |
|
Text (Lampiran)
21031010068.-lampiran.PDF Restricted to Repository staff only until 3 December 2028. Download (2MB) |
Abstract
This research aims to synthesize and characterize hydroxyapatite (HAp) based on Precipitated Calcium Carbonate (PCC) derived from limestone with the addition of gelatin using the sol–gel method. The variations used include gelatin concentrations of 10%, 20%, 30%, 40%, and 50%, as well as pH variations of 8, 9, 10, 11, and 12 to determine the optimum conditions for HAp formation. Analyses were carried out using FTIR to identify functional groups and SEM–EDX to observe morphology and determine the Ca/P ratio. The results show that variations in gelatin concentration and pH significantly affect the yield and characteristics of hydroxyapatite. The highest yield of 95% was obtained with 30% gelatin at pH 10–12. FTIR analysis revealed PO₄³⁻, OH⁻, and CO₃²⁻ groups, indicating the formation of hydroxyapatite. SEM results showed a porous morphology with particle sizes ranging from 445 to 495 nm, and porosity decreased with increasing pH (from 60.73% to 50.85%). EDX analysis showed Ca/P ratios ranging from 1.76 to 1.81, close to the stoichiometric value of 1.67. Thus, the optimum conditions were obtained at 30% gelatin and pH 10, producing hydroxyapatite with good crystallinity, nanosized particles, and a Ca/P ratio close to the ideal value, making it a promising candidate for biomaterial applications, particularly for bone and dental implants.
| Item Type: | Thesis (Undergraduate) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Contributors: |
|
||||||||
| Subjects: | T Technology > TP Chemical technology > TP155 Chemical engineering | ||||||||
| Divisions: | Faculty of Engineering > Departement of Chemical Engineering | ||||||||
| Depositing User: | Mohammad Rafli Alif Wahyudi | ||||||||
| Date Deposited: | 04 Dec 2025 03:07 | ||||||||
| Last Modified: | 04 Dec 2025 03:24 | ||||||||
| URI: | https://repository.upnjatim.ac.id/id/eprint/47628 |
Actions (login required)
 |
View Item |
