Shafwan, Muhammad Athallah Rifqi (2025) SINTESIS DAN KARAKTERISASI KOMPOSIT SILIKA KARBON DARI ABU BAGASSE (AMPAS TEBU). Undergraduate thesis, UPN Veteran Jawa Timur.
![[img]](https://repository.upnjatim.ac.id/style/images/fileicons/text.png) |
Text
21031010079-cover.pdf Download (8MB) |
|
Text

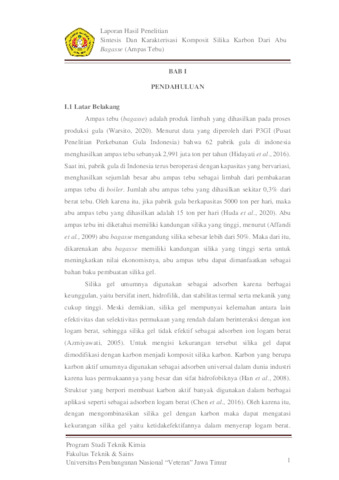

21031010079.-bab1.pdf Download (145kB) |
|
Text
21031010079.-bab2.pdf Restricted to Repository staff only Download (479kB) |
|
Text
21031010079.-bab3.pdf Restricted to Repository staff only Download (191kB) |
|
Text
21031010079.-bab4.pdf Restricted to Repository staff only Download (291kB) |
|
Text

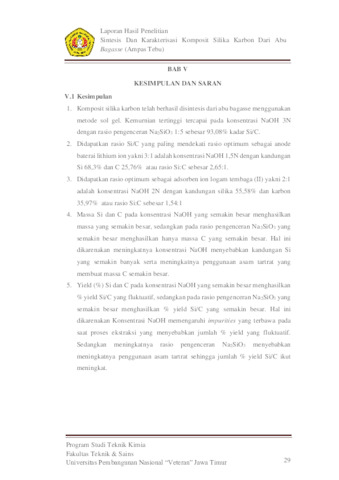

21031010079.-bab5.pdf Download (141kB) |
|
Text

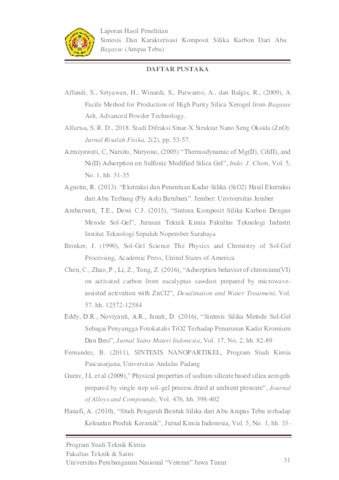

21031010079.-daftarpustaka.pdf Download (147kB) |
|
Text
21031010079.-lampiran.pdf Restricted to Repository staff only Download (682kB) |
Abstract
applications of this composite is as an effective adsorbent, capable of absorbing metal ions. Bagasse ash is a material that contains a relatively high amount of silica. In this study, bagasse ash will be utilized as a constituent in the fabrication of silica-carbon composites. In this study, bagasse ash was extracted with NaOH at concentrations of 1N, 1.5N, 2N, 2.5N, and 3N. The filtrate from the extraction, in the form of Na2SiO3, will undergo dilution with demineralized water at a ratio of 1:1, 1:2, 1:3, 1:4, and 1:5. The variation in NaOH concentration and Na2SiO3 dilution ratio is designed to ascertain the impact of these conditions and conditions with the Si/C content most analogous to the optimum Si/C ratio. The findings indicated that the optimal silica carbon composite was achieved at a NaOH concentration of 1.5, with a silica content of 68.3% and a carbon content of 25.76%, resulting in a Si:C ratio of 2.65:1. In contrast, a NaOH concentration of 2N, with a silica content of 55.58% and a carbon content of 35.97%, yielded a Si:C ratio of 1.54:1. The results of the XRD analysis demonstrated that the silica carbon composite did not exhibit any crystalline phase peaks. Instead, a range of 15–30° was observed, with the highest peak located at 2θ = 30.1226°. This finding indicates that the silica carbon composite is amorphous.
| Item Type: | Thesis (Undergraduate) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Contributors: |
|
||||||||
| Subjects: | T Technology > TD Environmental technology. Sanitary engineering T Technology > TP Chemical technology > TP155 Chemical engineering |
||||||||
| Divisions: | Faculty of Engineering > Departement of Chemical Engineering | ||||||||
| Depositing User: | Athallah Shafwan | ||||||||
| Date Deposited: | 15 Sep 2025 08:29 | ||||||||
| Last Modified: | 15 Sep 2025 08:29 | ||||||||
| URI: | https://repository.upnjatim.ac.id/id/eprint/43595 |
Actions (login required)
 |
View Item |
