Geralfine, Hilza Arrun (2025) STUDI NUMERIK KARAKTERISTIK ALIRAN FLUIDA PADA PIPA ELBOW 90° DENGAN VARIASI PENAMBAHAN GUIDE VANES. Undergraduate thesis, Universitas Pembangunan Nasional "Veteran" Jawa Timur.
![[img]](https://repository.upnjatim.ac.id/style/images/fileicons/text.png) |

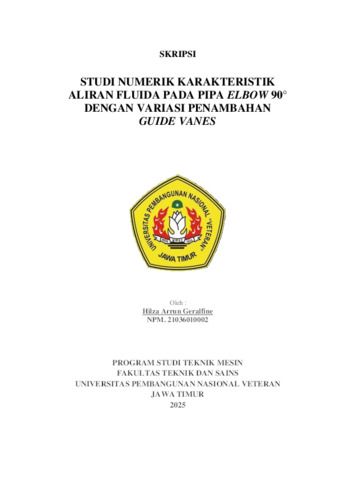

Text (Cover New)
21036010002.-Cover New.pdf Download (803kB) |
|

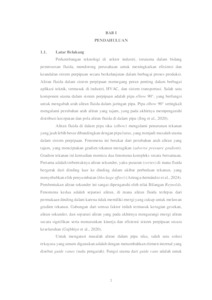

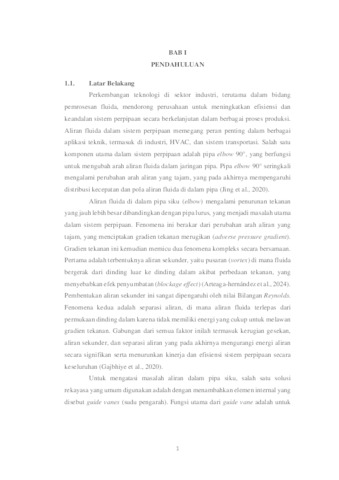

Text (Bab 1)
21036010002.-Bab 1.pdf Download (199kB) |
|
Text (Bab 2)
21036010002.-Bab 2.pdf Restricted to Repository staff only until 28 July 2027. Download (661kB) |
|
Text (Bab 3)
21036010002.-Bab 3.pdf Restricted to Repository staff only until 28 July 2027. Download (721kB) |
|
Text (Bab 4)
21036010002.-Bab 4.pdf Restricted to Repository staff only until 28 July 2027. Download (1MB) |
|

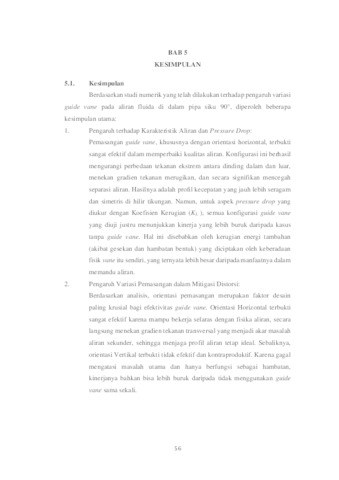

Text (Bab 5)
21036010002.-Bab 5.pdf Download (49kB) |
|

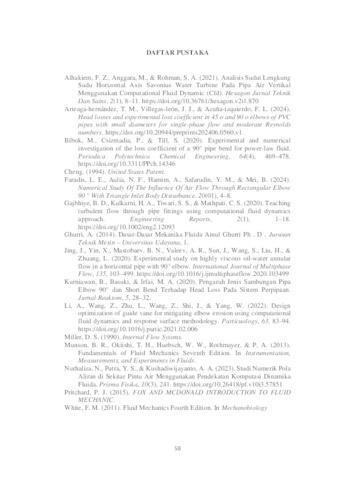

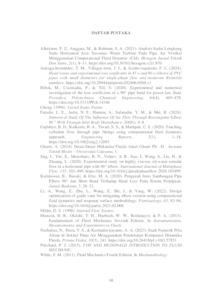

Text (Daftar Pustaka)
21036010002.-Daftar Pustaka.pdf Download (179kB) |
|
Text (Lampiran)
21036010002.-Lampiran.pdf Restricted to Repository staff only Download (1MB) |
Abstract
This study numerically analyzes the effect of adding guide vanes on turbulent flow (Re = 5.08×105) inside a 90° elbow pipe to address flow issues. This CFD simulation tests variations in the number (1, 2, 3) and orientation (horizontal/vertical) of guide vanes. The baseline case without guide vanes shows severe flow separation (u/Uavg = 0,2) due to extreme differences in the Coefficient of Pressure (Cp) (peak +1,3 minimum −0,9). The configuration with 3 horizontal guide vanes proved most effective in improving flow quality, preventing separation (u/Uavg = 0,8) and significantly stabilizing Cp. Conversely, the vertical orientation proved ineffective. However, paradoxically, the energy efficiency evaluation shows that the case without guide vanes has the lowest Minor Loss Coefficient (KL) of 1,00. All configurations with guide vanes actually increase total energy losses, with KL ranging from 1,09 to 2,14. This conclusion confirms that although horizontal guide vanes improve flow characteristics, their physical drag is greater than their aerodynamic benefits, making the tested design energy inefficient. Keywords: 90° Elbow Pipe, Guide Vanes, CFD, Flow Separation, Pressure Drop.
| Item Type: | Thesis (Undergraduate) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Contributors: |
|
||||||||
| Subjects: | Q Science > Q Science (General) Q Science > QA Mathematics > QA76 Computer software Q Science > QC Physics T Technology > TJ Mechanical engineering and machinery |
||||||||
| Divisions: | Faculty of Engineering > Departement of Mechanical Engineering | ||||||||
| Depositing User: | Hilza Arrun Geralfine | ||||||||
| Date Deposited: | 28 Jul 2025 04:15 | ||||||||
| Last Modified: | 28 Jul 2025 04:15 | ||||||||
| URI: | https://repository.upnjatim.ac.id/id/eprint/41191 |
